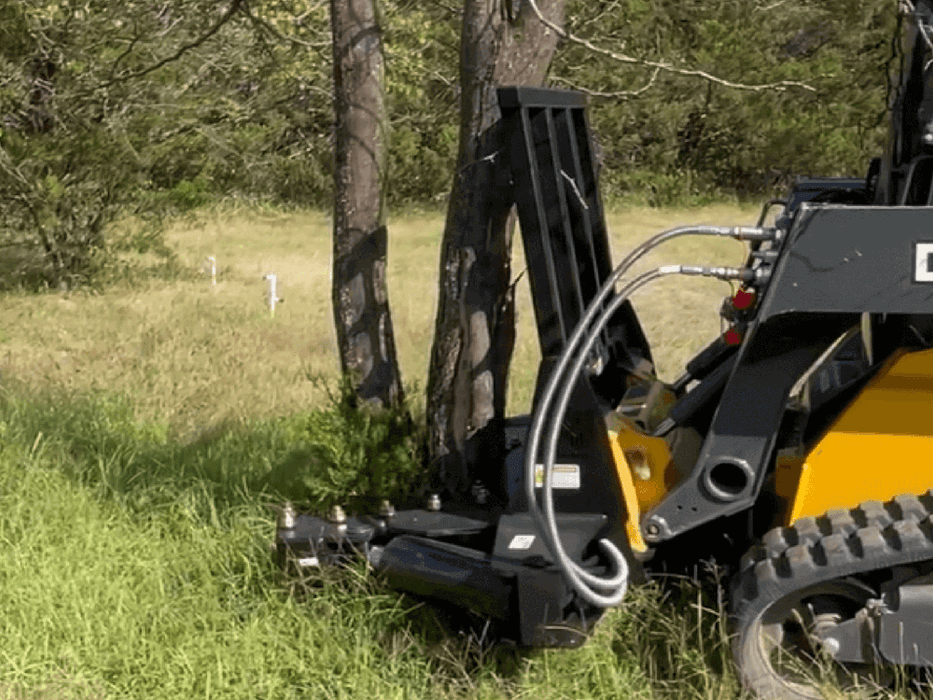

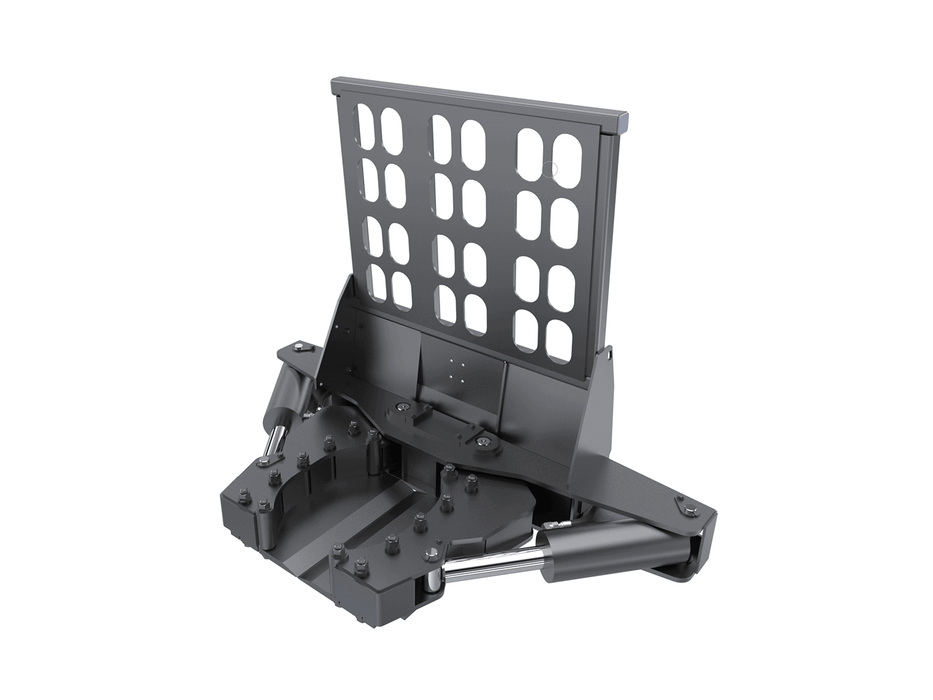

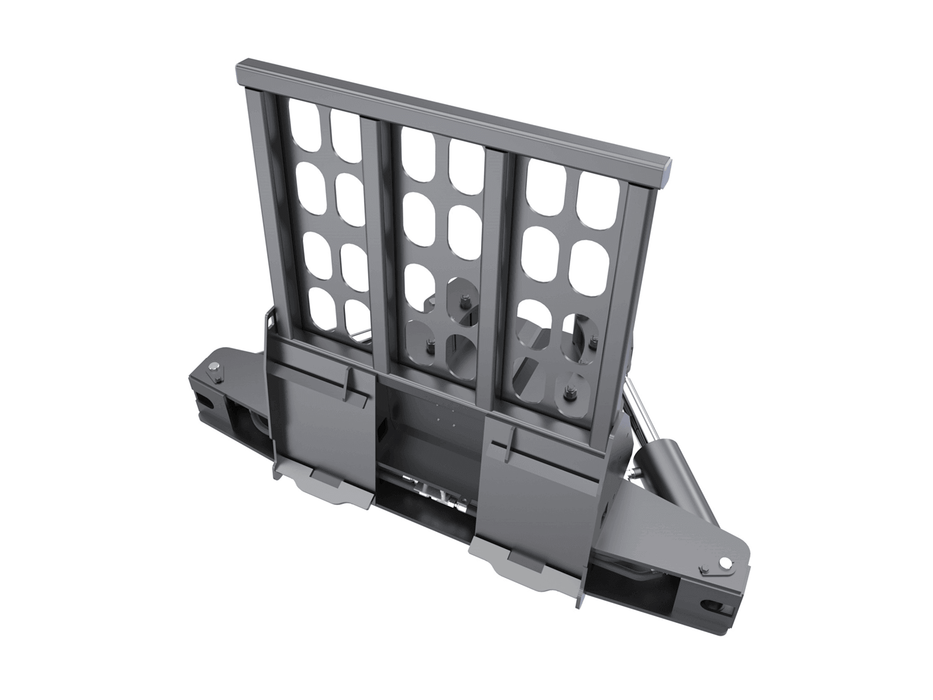

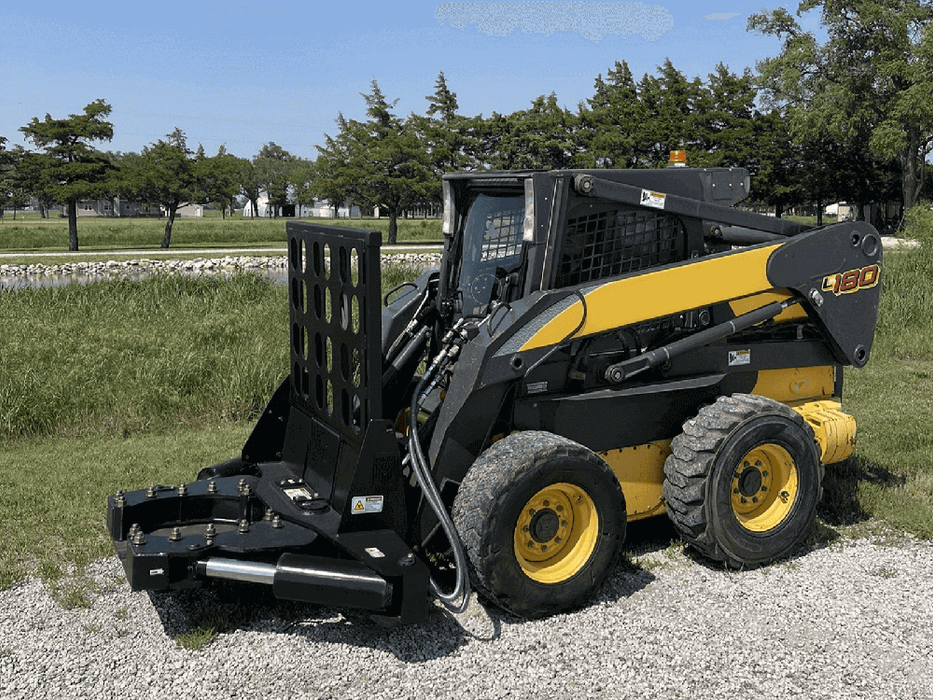

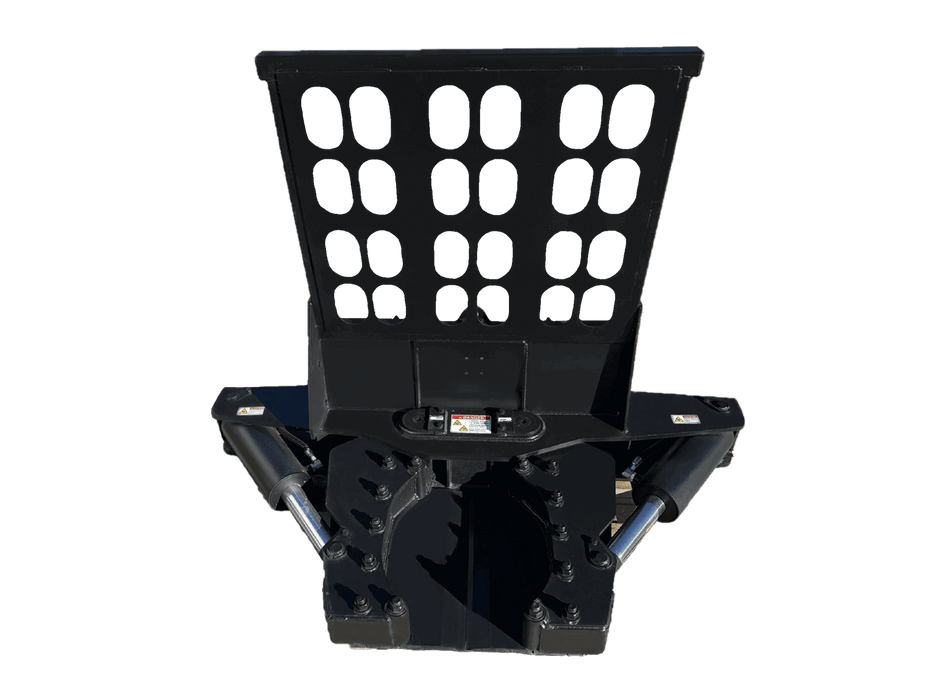

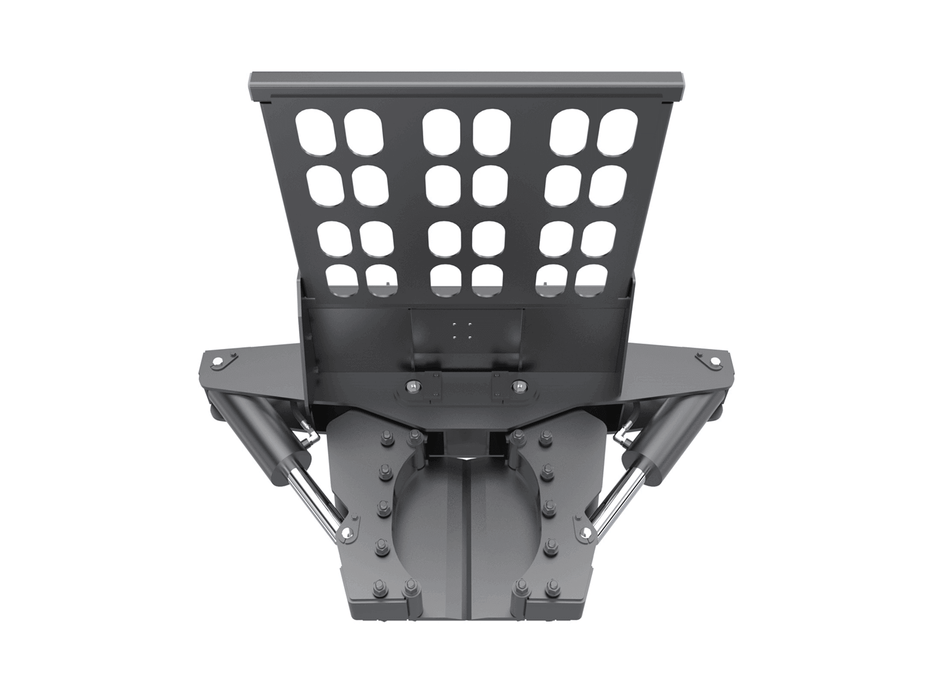

Maxx Attachments 20″ Ranch Axe Tree Shear with Brushrack Skid Steer Attachment 7434D1
✔️Authorized Dealer
✔️No Sales Tax Outside of California & New York
✔️This Item Ships by Truck Only
✔️For Questions Call +1 949-229-2361
✔️Manufacturer's Warranty
SPECIFICATIONS
| Model Number | 7434D1 |
|
Weight |
2000 lbs |
|
Height (in.) |
60" |
|
Width (in.) |
82" |
|
Overall Depth (in.) |
45″ |
|
Shear Blade Material |
1″ AR400 Steel Single-Bevel Blade (Replaceable) |
Machine Requirements |
Provided w/ set of jumper hoses & quick disconnects to standard flow line connections |
|
Operating Capacity |
2,100 (minimum) |
|
Hydraulic Flow Requirement (gpm) |
17 (minimum) |
|
Hydraulic Pressure Requirement (psi) |
3,000 (maximum) |
CYLINDER |
NUMBER |
ROD (IN.) |
BORE (IN.) |
STROKE (IN.) |
|
20” Ranch Axe Shear |
2 | 3" | 6" | 12" |
Description:
Ideally suited for cutting moisture hogging cedar and juniper trees, the Maxx 20” Ranch Axe tree shear is built to last. With a design based upon proven technology and years of experience, these rugged and dependable tools provide thousands of hours of effective pasture reclamation.
The Maxx 20” Ranch Axe tree shear is not suited for shearing hardwood species such as mesquite, oak, osage orange (hedge), or locust. If hardwood shearing is necessary, see the Maxx 14” Ranch Axe tree shear.
The Maxx 20” Ranch Axe Tree Shear is the standard to which others aspire.
FEATURES
- Near ground level cutting.
- Shear blades are comprised of AR400 high tensile steel.
- Extremely powerful 6” shearing cylinders.
- 3’ Brushguard assembly.
- Optional 5 gallon sprayer kit system available to prevent regrowth.
- Single bevel shear blades are easily replaced when worn.
- Heavy duty, box weld constructed shearing arms.
- Convenient and well protected hose routing.
- 3″ chrome plated pivot pins and replaceable bearings.
