SPECIFICATIONS

DESCRIPTION

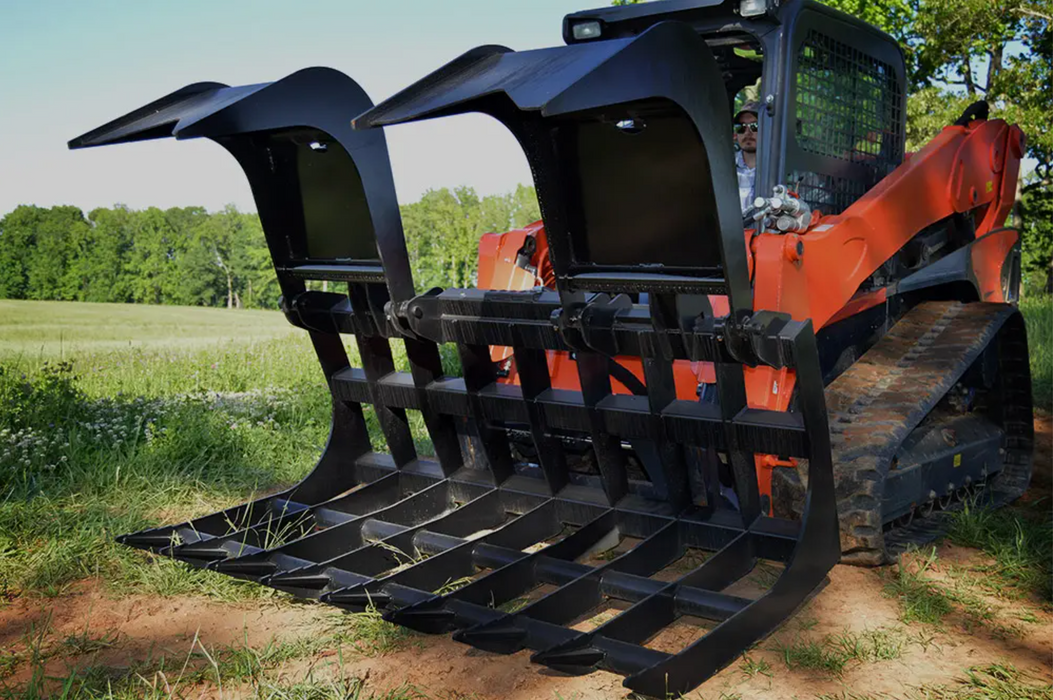

This skid steer attachment is absolutely vital in the tree industry and is quickly becoming a necessity among all contractors today. We offer this unique skid steer attachment in an assortment of sizes and designs for a variety of applications.

Perform 3 jobs in one – In a single pass the root grapple rakes away debris, keeps it in a manageable pile to move around with ease, and the round bottom bar provides the necessary tool for backfill. Load or pile logs, brush, rocks, demolition debris, and many other materials. Ideal for separating dirt from rock, lumber, or building materials with ease. The larger capacity means less loading and will save both time and energy. Lower your labor costs and shorten project schedules. Hydraulic cylinders operate independently to adjust for uneven loads. Enclosed cylinders and hoses come standard to minimize maintenance. Tines curve upward in order to slide across the land without damaging topsoil or catching utility lines or cables.

FEATURES

• Allows dirt to fall through

• Independent grapple tines, for grappling uneven loads

• 2″ x 10″ cylinders

• 7,500 lbs of grappling force

• Comes equipped with Parker brand hoses, fittings, and couplers (Jobsite ready)

• 1⁄2” thick steel tines

• Reinforced quick attach

• Fully protected hoses

• Covered hydraulic cylinders

• Oversized, greasable 11⁄4” pins

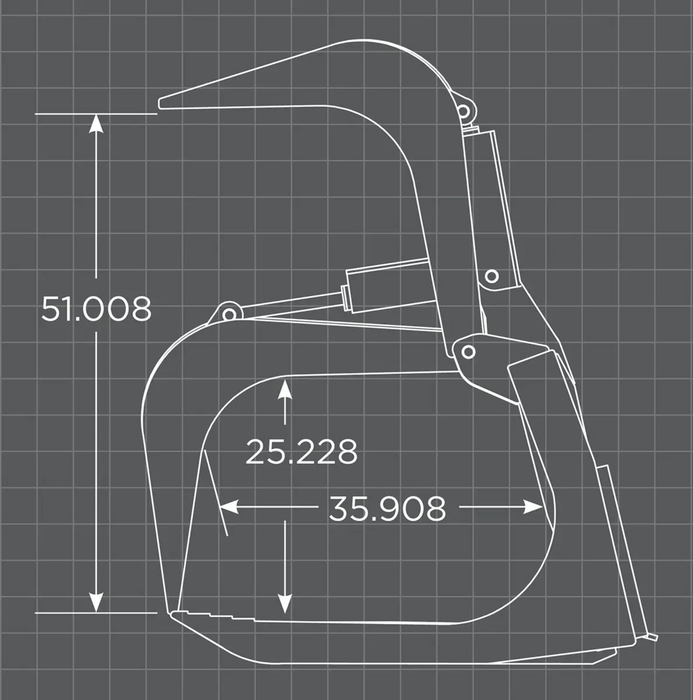

• Opening width: 51″

• Able to slide along top of the ground without digging in (avoiding underground damage)

• 2 pieces of 3″ round steel tubing in the bottom and 3 pieces of 4″ X 4″ tube in back for added strength

• We are the originator, not the imitator

• For 75 horse power and below

• 8 1⁄2” to 9″ spacing depending on width

• We stock sizes: , 72″, 78″, 84″, 96″, and custom sizes are also available
